Vehicle Types

Vehicle models in Transport Fever 3 are bound to one of the means of transportation road, rail, water or air. The distinction between the types of vehicles is achieved by specialized metadata entries in the .mdl-files for each type.

All vehicles on road and rail have some common properties which are specified in the landVehicle property:

...
landVehicle = {
  engines = {
    {
      power = 150,
      tractiveEffort = 30,
      type = "ELECTRIC",
    },
  },
  topSpeed = 19.444,
  weightEmpty = 14000,
  weightMaxPayload = 5000,
  friction = 0.02,
  brakeDeceleration = 2.5,
},
...

A vehicle may have zero, one or more engines in the engines struct. Each engine has the following three properties:

• type describes the motor type. Available are "HORSE", "STEAM", "DIESEL", "ELECTRIC".
• power is the maximum power the engine can produce in kW.
• tractiveEffort is the maximum tractive force the vehicle can develop in kN.

Beside the engines, there is the topSpeed in meter per second as well as the weightEmpty and weightMaxPayload of the vehicle in metric kilogram. The weightMaxPayload describes the additional weight when the vehicle is fully loaded. To adjust the acceleration and deceleration behavior, it is possible to modify the friction and brakeDeceleration values.

Road vehicles are bound to the street network built by the game or the player. They can drive along streets as well as on construction lanes of the right type in stations, depots and similar constructions.

They are indentified by the roadVehicle metadata struct and the .mdl-files usually are located in the subfolders:

• /vehicle/bus
• /vehicle/car
• /vehicle/truck

The roadVehicle metadata struct consists of several struct children as well as the properties for speed and weight:

...
roadVehicle = {
  config = {
    axles = { "w2", },
    fakeBogies = {
      { -- LOD 0
        {
          group = "RootNode",
          offset = 0,
          position = 0,
        },
      },
      { -- LOD 1
        {
          group = "RootNode",
          offset = 0,
          position = 0,
        },
      },
      ...
    },
    steeringParts = { },
    wheels = { "w1_lft", "w1_rgt", },
  },
},
...

The config struct inside the roadVehicle struct covers several properties regarding the 3D model:

• axles is a list of node name references pointing to the nodes which are axles that only rotate around the y axis while the vehicle is moving. This is usually used for rear axles.
• fakeBogies is a list of fake bogie definitions, one list per LOD. Usually road vehicles have at least one positioned approximately in the middle between the steering axis and the first back axis.
• steeringParts is a list of node names of nodes that are rotating around z axis when the vehicle turns around curves.
• wheels is a list of node name references pointing to the nodes that represent wheels which rotate around z axis in curves and around y axis while the vehicle is rolling. This is usually used for front wheels.

When the road vehicle uses the default road transformator, the following animation events can be used to support model aspects like opening doors:

• forever animation is used for roof ventilators or other elements that turn independently from the speed of the vehicle. It is looped forever and has no fixed length.
• drive animation is used for vehicle parts that move according to the current speed of the vehicle.
• open_all_doors is triggered after a vehicle stops at a station or bus/tram stop. It is triggered for stops on both sides of the vehicle.
• close_all_doors is triggered before the vehicle leaves a station or bus/tram stop. It is triggered for stops on both sides of the vehicle.
• open_doors_right is triggered after a vehicle stops at a station or bus/tram stop. It is only triggered for stops on the right side.
• close_doors_right is triggered before the vehicle leaves a station or bus/tram stop. It is only triggered for stops on the right side.
• open_doors_left is triggered after a vehicle stops at a station or bus/tram stop. It is only triggered for stops on the left side.
• close_doors_left is triggered before the vehicle leaves a station or bus/tram stop. It is only triggered for stops on the left side.
• brake_lights_on/brake_lights_off is triggered when a vehicle is applying its brakes.
• blink_lights_left_on/blink_lights_left_off is triggered when turning left or departing at a stop.
• blink_lights_right_on/blink_lights_right_off is triggered when turning right.

Rail vehicles run on the track network built by the player and can drive along built tracks as well as on track lanes in stations, depots and similar constructions.

They are indentified by the railVehicle metadata struct and the .mdl-files usually are located in the subfolders:

• /vehicle/train for motorized rail vehicles
• /vehicle/wagon for unmotorized rail vehicles
• /vehicle/tram for trams.

The railVehicle metadata struct consists of several struct children as well as the properties for speed and weight:

...
railVehicle = {
  config = {
    axles = { "w1", "w2" },
    fakeBogies = {
      { },-- LOD 0
      { },-- LOD 1
      ...
    },
  },
},
...

The config struct inside the railVehicle struct covers several properties regarding the 3D model:

• axles is a list of node name references pointing to the nodes which are axles that only rotate around the y axis while the vehicle is moving.
• fakeBogies is a list of fake bogie definitions, one list per LOD. Usually simple rail vehicles only have fake bogies in LODs without seperate axles. Trains and trams with jacobs bogies and other nested constellations might need these also for lower LODs.

When rail vehicles use the default transformator, the following animation events can be used to support model aspects like opening doors:

• forever animation is used for roof ventilators or other elements that turn independently from the speed of the vehicle. It is looped forever and has no fixed length.
• drive animation is used for vehicle parts that move according to the current speed of the vehicle.
• wheels animation is used for vehicle parts that move according to the current speed of the vehicle. The animation length is mapped to the wheel rotation by the game engine.
• open_all_doors is triggered after a vehicle stops at a station or bus/tram stop. It is triggered for stops on both sides of the vehicle.
• close_all_doors is triggered before the vehicle leaves a station or bus/tram stop. It is triggered for stops on both sides of the vehicle.
• open_doors_right is triggered after a vehicle stops at a station or bus/tram stop. It is only triggered for stops on the right side.
• close_doors_right is triggered before the vehicle leaves a station or bus/tram stop. It is only triggered for stops on the right side.
• open_doors_left is triggered after a vehicle stops at a station or bus/tram stop. It is only triggered for stops on the left side.
• close_doors_left is triggered before the vehicle leaves a station or bus/tram stop. It is only triggered for stops on the left side.
• brake_lights_on/brake_lights_off is triggered when a vehicle is applying its brakes.

Trams with the default transformator have the same events except for the wheels animation and additionally they support:

• blink_lights_left_on/blink_lights_left_off is triggered when turning left or departing at a stop.
• blink_lights_right_on/blink_lights_right_off is triggered when turning right.

For both reversible trains and trams, see the description in the next chapter.

Some rail and tram vehicles are defined as multiple units. Then they are a fixed consist of more than one model. The configuration files for multiple units are usually located next to the .mdl files and have .mu.lua as file ending.

function data()
return {
  vehicles = {
    { name = "ice1.mdl", forward = true },
    { name = "ice1_waggon_1.mdl", forward = true },
    ...
    { name = "ice1.mdl", forward = false },
  },
  name = _("VEHICLE_MULTIPLEUNIT_ICE1_NAME"),
  desc = _("VEHICLE_MULTIPLEUNIT_ICE1_DESCRIPTION"),
  filterTags = { "default" },
  groupFileName = "",

}
end

The configuration has four properties:

• vehicles is a list of vehicle models used in the multiple unit consist. For each of the vehicles there are two properties:
  • name is a reference to the model file relative to the location of the .mu.lua file.
  • forward is a boolean value. If set to true the model is used as is, otherwise it is flipped by 180 degrees.
• name is the name of the multiple unit that is used in the vehicle store. By encasing it in _(), it is marked to be localized in the mods ''strings.json''.
• desc is the description of the multiple unit used in the vehicle store. It can be translated too. The technical data is calculated based on the individual vehicles used in the multiple unit.
• filterTags is a list of custom tags. The multiple unit will only appear in depots when they match all of the tags defined in the depot. If the list of the multiple unit is empty, the multiple unit does not appear in any depot. If the list is not set, it is considered as having the tag default which is used in vanilla depots.
• groupFileName is an optional reference to another multiple unit or a model to define this multiple unit as a variant under the other multiple unit / model as parent. See the buy menu group explanation for further details.

Ships are bound to the navigatable water on the map. The routes are dynamically calculated based on the reachable water regions. In harbors, they stop at designated points.

They are indentified by the waterVehicle metadata struct and the .mdl-files usually are located in the /vehicle/ship subfolder.

The waterVehicle metadata struct consists mostly of properties used for simulation:

waterVehicle = {
  area = 5,
  availPower = 294000.0,
  weightEmpty = 135000.0,
  maxRpm = 55,
  topSpeed = 7.5,
  type = "BIG",
  waterLine = {
    -- waterline configuration
  }
},

There are the following properties:

• area is the maximum under water cross sectional area of the ships body in m², which linearly correlates with the drag force
• availPower is the maximum available power the engines can produce in W (not in kW!)
• weightEmpty is the empty weight of the ship in kg
• weightMaxPayload is the additional weight in kg when the vehicle is fully loaded
• maxRpm is the maximum rotation per minute of the main paddle wheel. This value is used for animation calculation.
• topSpeed is the maximum speed the vehicle can reach in meter per second.
• type is used to distinct between small and large ships. Only "SMALL" ships can stop at the small piers. "BIG" ships need the large pier.

The waterLine struct describes the form of the ship at water level that is used to generate the spume around the ships body. It is a list of two-value pairs each representing a point with x- and y-coordinate relative to the model origin.

Ships support some animation events. They can be used in mesh nodes to support model aspects like opening doors:

• forever animation is used for continous animations like the radar beacons on ships.
• drive animation is used for vehicle parts that move according to the current speed of the vehicle.
• paddles is used for the rotating paddles of steam ships and the ones of more modern motor ships. When using the default paddle animation, paddle wheel steamers can keep the mesh orientation as usual, for modern propellers rotation around the x axis, simply rotate the mesh by 90° so the y axis of the mesh points in the direction of the intended rotation axis.
• rudder is used for the directional rudder of ships. The animation has to have keyframes from 0 to 1000, where 0 and 1000 are the extreme positions and 500 is the middle position.
• open_all_doors is triggered after a vehicle stops at a harbor. It is triggered for stops on both sides of the vehicle.
• close_all_doors is triggered before the vehicle leaves a harbor. It is triggered for stops on both sides of the vehicle.
• open_doors_right is triggered after a vehicle stops at a harbor. It is only triggered for stops on the right side.
• close_doors_right is triggered before the vehicle leaves a harbor. It is only triggered for stops on the right side.
• open_doors_left is triggered after a vehicle stops at a harbor. It is only triggered for stops on the left side.
• close_doors_left is triggered before the vehicle leaves a harbor. It is only triggered for stops on the left side.

Airplanes are not bound to any terrain or infrastructure except the airports where they land, stop and start.

They are indentified by the airVehicle metadata struct and the .mdl-files usually are located in the /vehicle/plane subfolder.

The airVehicle metadata struct consists of several struct children as well as the properties for speed and weight:

airVehicle = {
  axles = {
    {
      position = { -2.23, 0.37, },
      radius = 0.49,
    },
    ...
  },
  wheels = {
    {
      position = { 11.66, 0.43, },
      radius = 0.34,
    },
    ...
  },
  config = {
    axleRadii = { 0.49, ... },
    axles = { "w2_bck_lft", "w2_bck_rgt", },
    fakeBogies = {
      {
        {
          group = "RootNode",
          offset = 0,
          position = 5,
        },
        ...
      },
      ...
    },
    steeringParts = { "gear_g1_steering", },
    wheelRadii = { 0.34, },
    wheels = { "w1_frt", },
  },
  hasFlaps = true,
  maxThrust = 160000,
  timeToFullThrust = 3,
  topSpeed = 234.7222222,
  weightEmpty = 17819,
  weightMaxPayload = 5000,
  wingArea = 64,
  type = "BIG",
},

To calculate the correct positioning of the planes, additional info about the axles and wheels is needed. Both are lists with an entry for every position along x axis where axles or wheels are. Each entry has two properties:

• position is the distance along x and z axis from the model origin.
• radius is the half diameter of the wheel.

Further info used for animation and positioning is provided in the config struct:

• axles is a list of node name references pointing to the nodes which are axles 3 that only rotate around the y axis while the vehicle is moving.
• axleRadii is a list of half diameters of the axles in meter for every axle node listed in the property directly above. It is used to calculate the plane tilting on ground when the axles and wheels are not at the same height level and size.
• fakeBogies is a list of fake bogie definitions. Air vehicles with complicated axle and wheel constellations might need these.
• steeringParts is a list of node names of nodes that are rotating around z axis when the vehicle turns around curves.
• wheels is a list of node name references pointing to the nodes that represent wheels 11 which rotate around z axis in curves and around y axis while the vehicle is rolling.
• wheelRadii is a list of half diameters of the wheels in meter for every wheel node listed in the property directly above. It is used to calculate the plane tilting on ground when the axles and wheels are not at the same height level and size.

Beside the config struct, there are additional properties used for the simulation of planes and helicopters:

• hasFlaps is a boolean value providing info about the presence of flaps in the vehicle.
• maxThrust is the maximum total thrust the engines can generate in N.
• idleThrust is the thrust generated by the engines in idle state in N.
• isHelicopter is a boolean value that is set to true when the air vehicle is simulated with vertical landing and take-off.
• timeToFullThrust is the time the engines need from idle state to generate full thrust in seconds.
• topSpeed is the maximum speed the vehicle can reach in meter per second.
• weightEmpty is the empty weight of the ship in kg.
• weightMaxPayload is the additional weight in kg when the vehicle is fully loaded.
• wingArea is the wing area in m², which correlates linearly with the lift force.
• type is used to distinct between small and large planes. Only "SMALL" planes can land at the small airfields. "BIG" planes need the large airports.

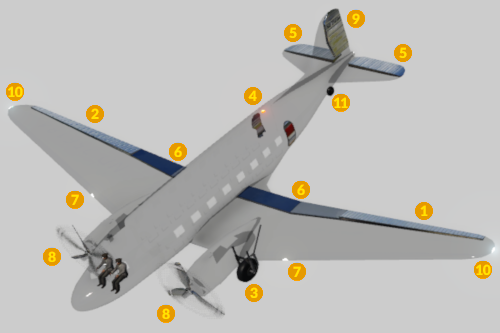

Planes support some animation events. They can be used in mesh nodes to support model aspects like opening doors:

• forever animation is used for elements that turn independently from the speed of the vehicle. It is looped forever and has no fixed length.
• drive animation is used for vehicle parts that move according to the current speed of the vehicle.
• aileron_left is used for the left aileron 1 used when the aircraft is rolling. The animation has to have keyframes from 0 to 1000, where 0 and 1000 are the extreme positions and 500 is the middle position.
• aileron_right is used for the right aileron 2 used when the aircraft is rolling. The animation has to have keyframes from 0 to 1000, where 0 and 1000 are the extreme positions and 500 is the middle position.
• beacon_lights is triggered repeatedly to highlight the body of the plane 4. The default animation is a flash.
• elevator is used for the elevator 5 used when the aircraft is pitching. The animation has to have keyframes from 0 to 1000, where 0 and 1000 are the extreme positions and 500 is the middle position.
• flaps is used for the flaps 6 that are used especially during take off and landing. The animation has to have keyframes from 0 to 1000, where 0 is the retracted and 1000 the extended state.
• landing_light_on/landing_light_off is triggered to switch on or off the landing lights 7.
• props_on/props_off animations shows and rotates the propellers 8 on slow speeds.
• props_blurred_on/props_blurred_off animations shows and rotates the propellers on fast speeds.
• rudder is used for the directional rudder of planes 9. The animation has to have keyframes from 0 to 1000, where 0 and 1000 are the extreme positions and 500 is the middle position.
• strobe_lights is triggered repeatedly to highlight the extremities of the plane 10. The default animation is a double flash.
• open_all_doors is triggered after a vehicle stops at a gateway. It is triggered for gateways on both sides of the vehicle.
• close_all_doors is triggered before the vehicle leaves a gateway. It is triggered for gateways on both sides of the vehicle.
• open_doors_right is triggered after a vehicle stops at a gateway. It is only triggered for gateways on the right side.
• close_doors_right is triggered before the vehicle leaves a gateway. It is only triggered for gateways on the right side.
• open_doors_left is triggered after a vehicle stops at a gateway. It is only triggered for gateways on the left side.
• close_doors_left is triggered before the vehicle leaves a gateway. It is only triggered for gateways on the left side.
• open_doors_cargo animation is used to open cargo payload doors.
• close_doors_cargo animation is used to close cargo payload doors.
• open_wheels is triggered before the landing approach to extend the landing gear.
• close_wheels is triggered after take off to retract the landing gear.
