Animals

Animals basically are models as any other object in the game, but they have some unique events and a special metadata struct so they are spawned and move around the map.

In addition to the general .mdl properties, animals use the cameraConfig struct as players can follow animals in first person view. Furthermore, there is a metadata struct called animal:

function data()
return {
  -- bounding box
  -- collider
  -- lods

  metadata = {
    description = {
      name = _("Salmon"),
    },
    cameraConfig = {...},
    animal = {
      config = {...},
      flockName = "",
      flockFormationFn = {
        fileName = "/animal/animal.script@flock.salmon",
        params = { },
      },
      movement = {...},
      movementTypes = {...},
      suitableAreas = {...},
    },
    categoryList = {
      categories = { "temperate.clima", "subarctic.clima", },
    },
  },
  version = 1,
}
end

The name is shown as the default name if the user clicks on an animal. It can be translated in a strings.json file.

The cameraConfig struct is used for the first person view. To learn how to define camera views, read the relevant section in the model definition documentation.

The animal struct contains several property structs, these are described below.

The config struct contains several general properties for animals:

• density is a float value. Land animals and birds usually have value 1, fishes have density 4.
• fish is a boolean value. When it is set to true, the animal is restricted to water.
• idleTime is the time that is spent in idle mode before moving somewhere else.
• predator is a boolean value. If set to true, this animal will be avoided by some others, e.g. deers avoid bears.
• targetDistance is a float value. It is the distance in which the animals look for new target locations.

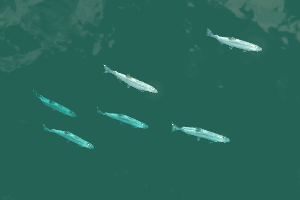

Birds and Fishes may travel around in flock formations. If an animal has a configured flock, it will move in this group. Otherwise the animal will move alone.

The flock formations have a name that is specified in flockName. The formation is configured in an external .script.lua file. This is referenced in flockFormationFn. The .script.lua looks like this:

function data()
return {
  flock = {
    salmon = function()
    ...
    return {
      positions = {...},
      overrides = {...},
    }
    end
  },
  ...
}
end

The functions do not have any parameters. The expected result struct contains two properties:

• positions is a list of positions with three numbers for the X/Y/Z coordinates each. The coordinates are relative to the flock origin
• overrides is an optional list of models that shall be used instead of the main model, e.g. to have color variant.

The movement struct describes some restrictions regarding where the animals move:

• alignToTerrain is true for land animals, as they move along the terrain surface. Birds or fishes have the property set to false.
• heightOffset is the value they are offsetted of the water height if alignToTerrain is false or the terrain surface, if alignToTerrain is set to true. Fishes usually have negative values, birds have positive values.
• rollWhileTurning is set to true if the animal should roll a bit when turning around curves. Usually that is done for birds.
• stickToWater restricts animals to water areas. This is set to true for fishes.
• wobbleWhenIdle is set to true, if the animal should move slightly in idle state. This is usually used for fishes too.

It is possible to define several movement types. For example, land animals can stay around (idle), walk and run. For each of the movement types, there is a struct in the movementTypes list with the following properties:

• angularSpeed is the turn speed. Slow angular speed results in the animal having very large curve radii.
• description is a translatable string to describe the current action. It is shown in the animal detail window.
• despawnAtEnd is a boolean value set to true if the animal should be removed after the animation completed, e.g. after an animal died.
• duration is a number value setting the length of the animation.
• eventName is the name of the event that is defined in the levels of detail.
• playOnce is set to true, if the animation is not looping, e.g. when the animal dies.
• playRandomly is set to true, if this movementType can occure randomly. The normal behaviour of an animal is a series of such random animations.
• playWhenSelected is set to true if the animation should be played whenever the player clicks on the animal. For example, a bear is roaring.
• speed is the speed of the animal while this animation is played. It is specified in meter per second.

The suitableAreas struct is used to limit the occurance and movement of animals to certain areas. There are several terrain related factors as well as factors related to other animals. All factors are mapped to scores. The overall sum of scores summarizes the likelyhood of the animal existing in a certain spot. If an animal gets into an area with negative score, it will try to run away. If it fails to leave the non suitable area it will eventually die.

• bias is a static score offset applied to any animal.
• height is a struct property that maps an interval of heightlevels mapFrom to an interval of scores mapTo. Height values below the lower interval limit are considered equal to the lower limit, height values above the upper limit are considered equal to the upper limit.
• noise is a struct property that maps an interval of emission levels mapFrom to an interval of scores mapTo. Height values below the lower interval limit are considered equal to the lower limit, height values above the upper limit are considered equal to the upper limit.
• scores is a struct of criterias with static scores:
  • civilisation is everywhere were AI or player constructed buildings and streets are.
  • fish is the area around water animals.
  • forest is the area around trees.
  • predator is the area around animals with config.predator == true.
  • ship is the area around ships on rivers or lakes.
  • shore is the area along river and lake borders.
  • water is the area where there is water.
• slope is a struct property that maps an interval of steepness levels mapFrom to an interval of scores mapTo. Height values below the lower interval limit are considered equal to the lower limit, height values above the upper limit are considered equal to the upper limit.
• waterDepth is a struct property that maps an interval of water depth levels mapFrom to an interval of scores mapTo. Height values below the lower interval limit are considered equal to the lower limit, height values above the upper limit are considered equal to the upper limit.

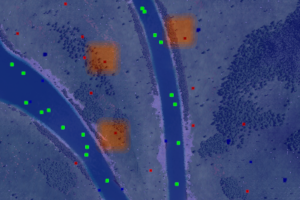

It is possible to analyze the score factor maps with the ingame debug tools.

The events of animals are mostly defined by their movementTypes. The most common events are:

• idle animation is used for a resting animal or for sailing birds. It can be looped.
• idle_standing animation is used for resting birds. It can be looped.
• walk / fly / swim animations are used for actively moving animals. It can be looped.
• run animation is used for fast moving animals. It can be looped.
• roar / intimidate / eat / pee / baa / kick / sitdown animations are used for random events or when the player clicks on an animal.
• die is used for the end of life sequence of an animal. It is played only once.
